ASM TD6 WITH P5B PULSER

5142651U
Used
Ultrasound
LOGIQ 9
GE HealthCare
GE HealthCare – Imaging/UL/PCS Parts
GE HealthCare
Total
Añadir a la lista de deseos
Iniciar sesión y agregar al carrito
Iniciar sesión y agregar al carrito
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Características

  • Easy to connect / disconnect
  • Compact size
  • High quality components
  • Reliable performance

Descripción del producto

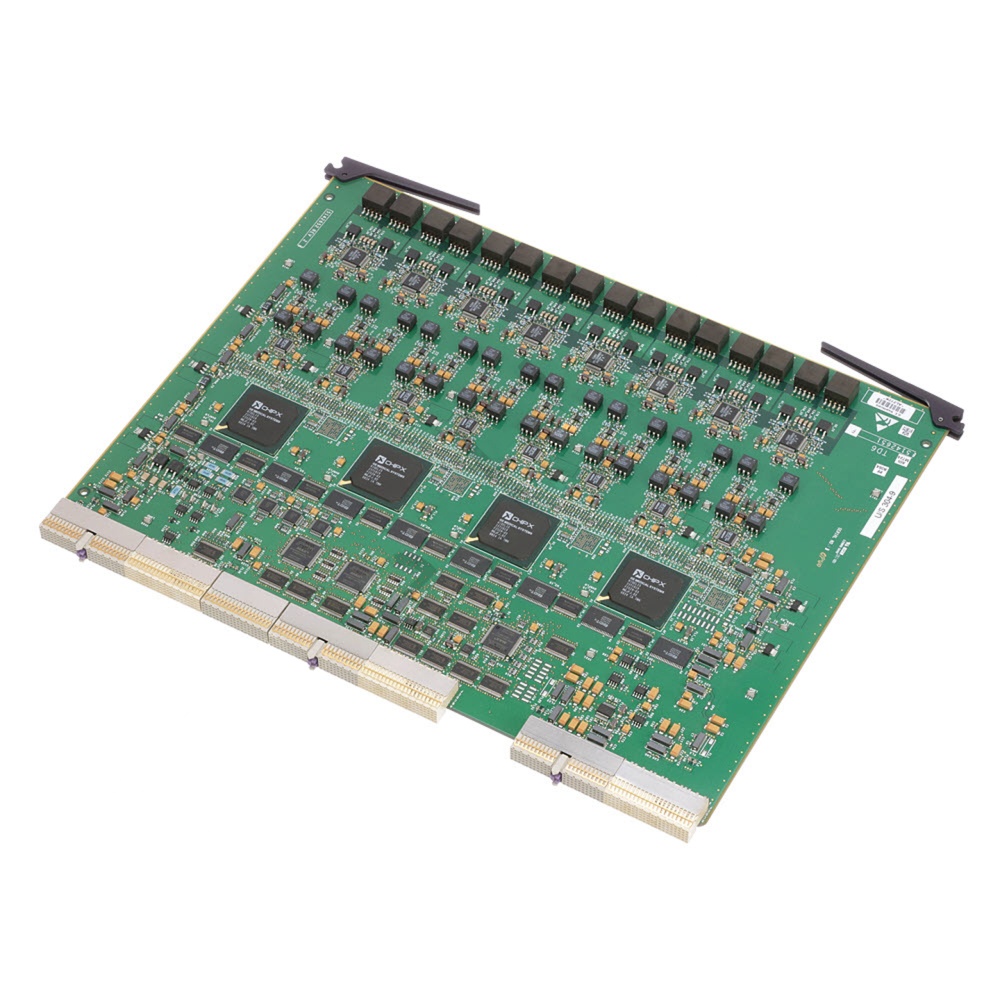

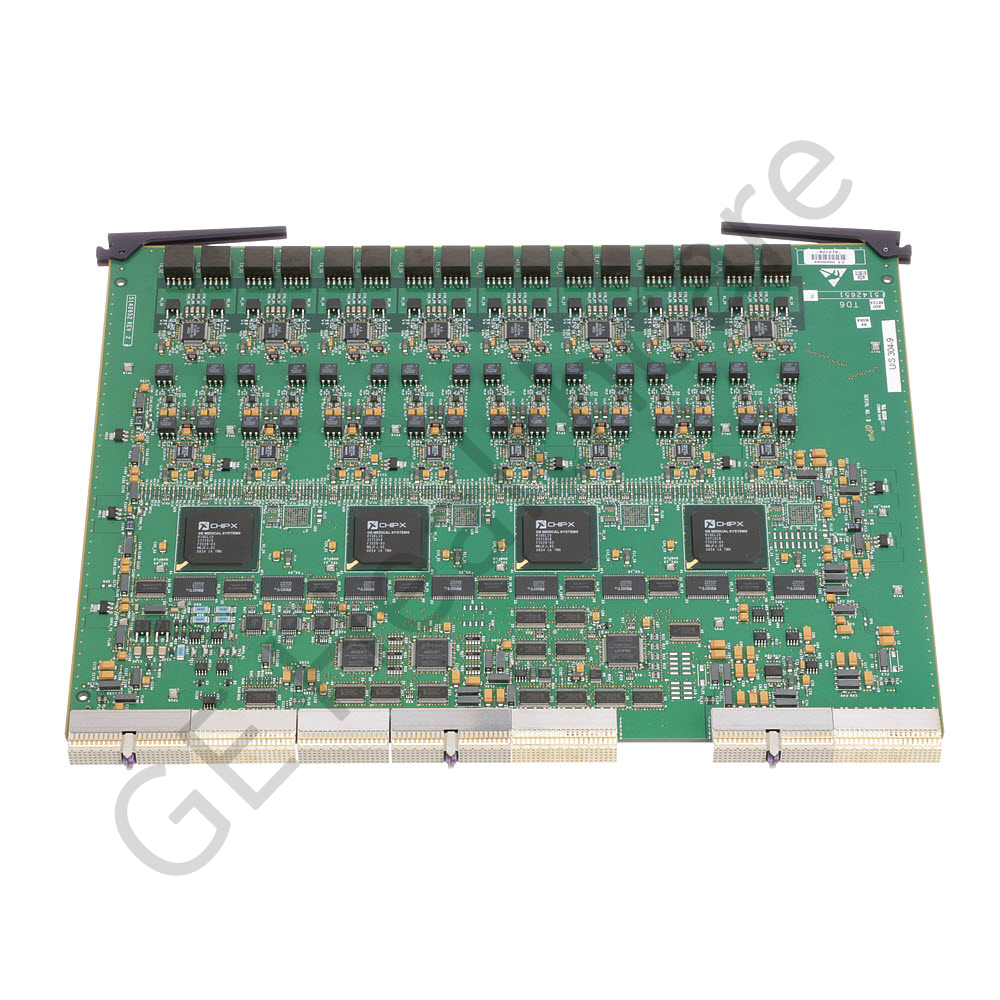

The main purpose of this Time Delay 6 (TD6) board with P5B Pulser is to transmit RF waveform, receive the echo from the RF Amplifier PCB and form the summed phased array lens. The output of the TD6 boards is a complex (I & Q) beam sum data stream. The main components on the board are EEPROM, SRAM memory, Diodes, resistors, capacitors, IC's, transceivers, ferrite beads, inductors, connectors, Programmable Logic Devices (PLDs) and regulators. The TD6 boards reside in the front end. The analog, digital and power interfaces to the TD6 board are through the backplane PCB (Printed circuit board). The TD6 board has additional P5B Pulser which was not present in the earlier versions. The circuit board is made up of FR-4 Glass fiber, which is a composite material that consists of glass fabric, and electrical grade epoxy resin. The material is strong and stiff, has a low coefficient of thermal expansion, and outstanding electrical properties. This Board can be used with GE's Logic V9 systems.
