North America Power Cord

5148381
2162856
New
Ultrasound
LOGIQ E9
GE HealthCare
GE HealthCare – Imaging/UL/PCS Parts
GE HealthCare
Total
Añadir a la lista de deseos
Iniciar sesión y agregar al carrito
Iniciar sesión y agregar al carrito
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Características

  • Underwriters Laboratories (UL) certified for US and Canada
  • RoHS compliant
  • Safe to use
  • Field Replacement Unit (FRU) - can be removed and replaced quickly and easily

Descripción del producto

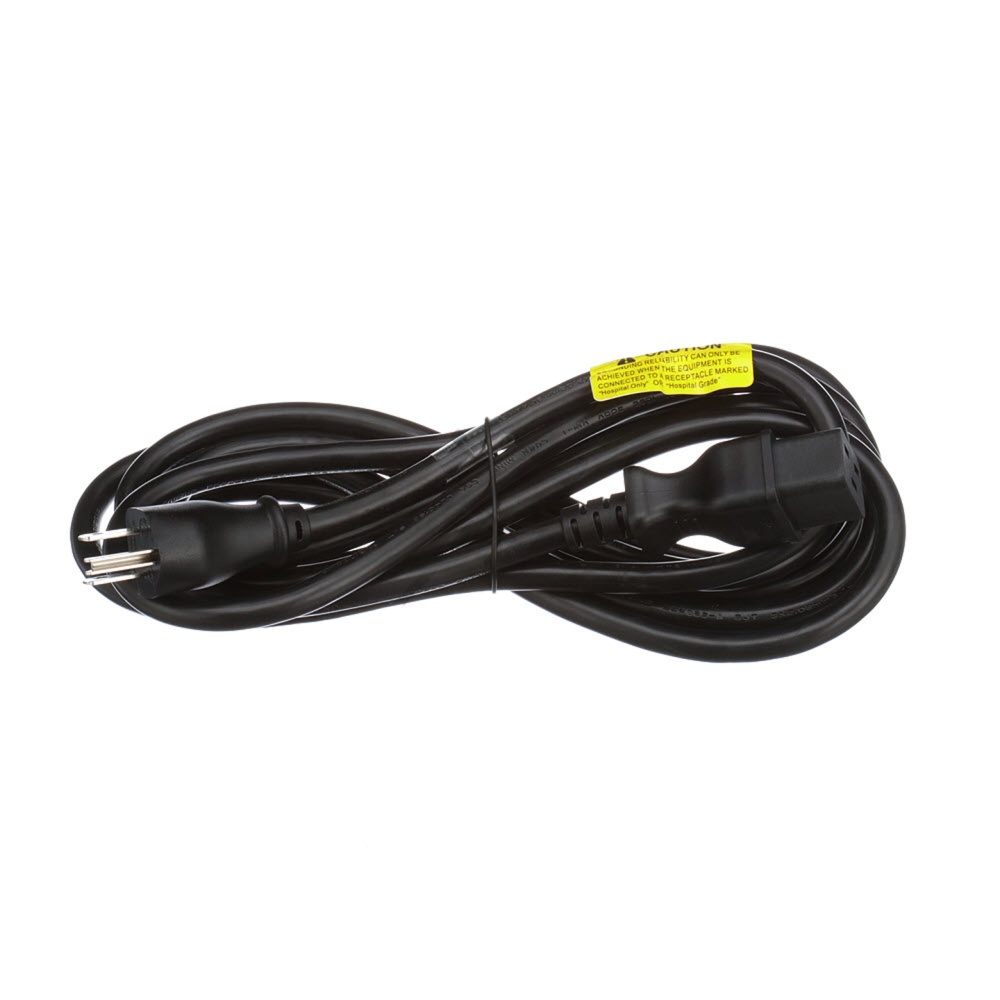

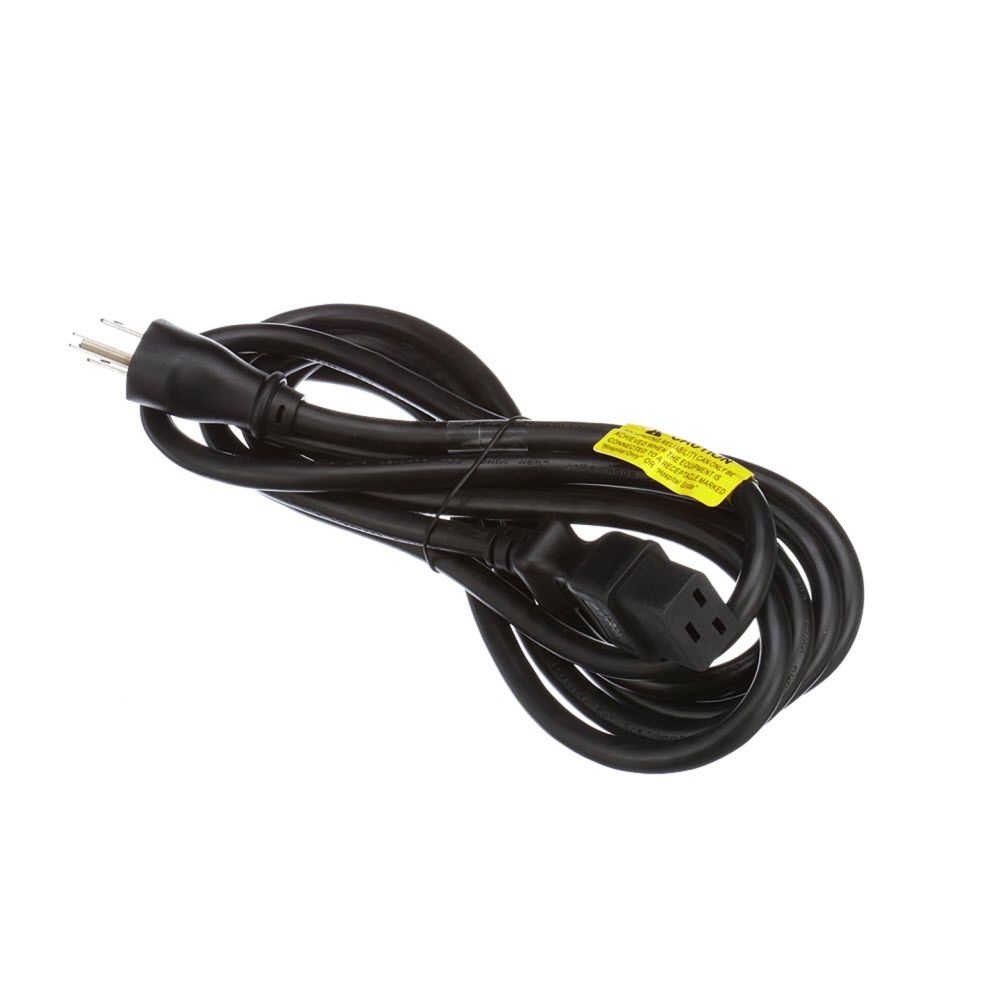

The North America Power Cord is used to supply power to medical components. It uses 3 conductor cables with black, white, green colors (or brown, light blue, green/yellow). The cable has a maximum temperature rating of 105˚C and is type SJT 3 x 2.08 mm which is a 14 AWG gauge cable. It has a voltage rating of 300V and flame rating of VW-1. The cord insulation is well tested with a high potential test of minimum 2000VAC between wire to wire and between the wires to the skin. The cord ground continuity is tested with 25AC current source for 2 seconds, showing maximum resistance of 0.1 ohms. The cord’s L and N continuity are tested with an AC current source which is minimum 75% of the rating of the cord for 2 seconds, showing max resistance of 0.1 ohms for each wire. Over mold dimensions are shown for proper fastening of connector to product. The cord has id labels and caution labels. It is packed in a plastic bag, heat sealed, labeled and placed into carton.

  • Características adicionales

    • Safe packaging
    • Durable and aesthetic
    • Plugs marked for easy usage

    Artículo equivalente:

    Tenemos las siguientes piezas equivalentes disponibles para usted. Estas son piezas de reemplazo compatibles. Estas piezas sin un hipervínculo se enumeran solo como referencia y no están disponibles para su compra en línea. Para obtener información adicional, comuníquese con el servicio al cliente

    Artículo equivalenteDetalles de parte
    2162856

    2162856
