LOGIQ E9 R5 Lower Operator Panel Hi Rose Trackball Connector

5208000-3-R
Refurbished
Ultrasound
LOGIQ E10
GE HealthCare
GE HealthCare – Imaging/UL/PCS Parts
GE HealthCare
Intercambio - Devolución defectuosa

Core Exchange
The purchase price for this item is expressly conditioned upon Customer’s return of the corresponding core item to GE HealthCare within 30 days following the shipment date of this item. If GE HealthCare does not receive the core item within such 30 days, GE HealthCare may invoice Customer for the full list price for this item. The core item must be returned in a condition suitable for use, remanufacturing, or refurbishment, as reasonably determined by GE HealthCare in its sole discretion. If the core item is not returned in such condition, GE HealthCare may invoice Customer for the full list price for this item. Customer is responsible for all costs and risks associated with shipping the core item to GE HealthCare.

Añadir a la lista de deseos
Iniciar sesión y agregar al carrito
Iniciar sesión y agregar al carrito
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Características

  • Miniature size
  • Multi contact
  • Corresponds to automatic mounting
  • UL certified

Otras opciones de compra


Condition: New

Descripción del producto

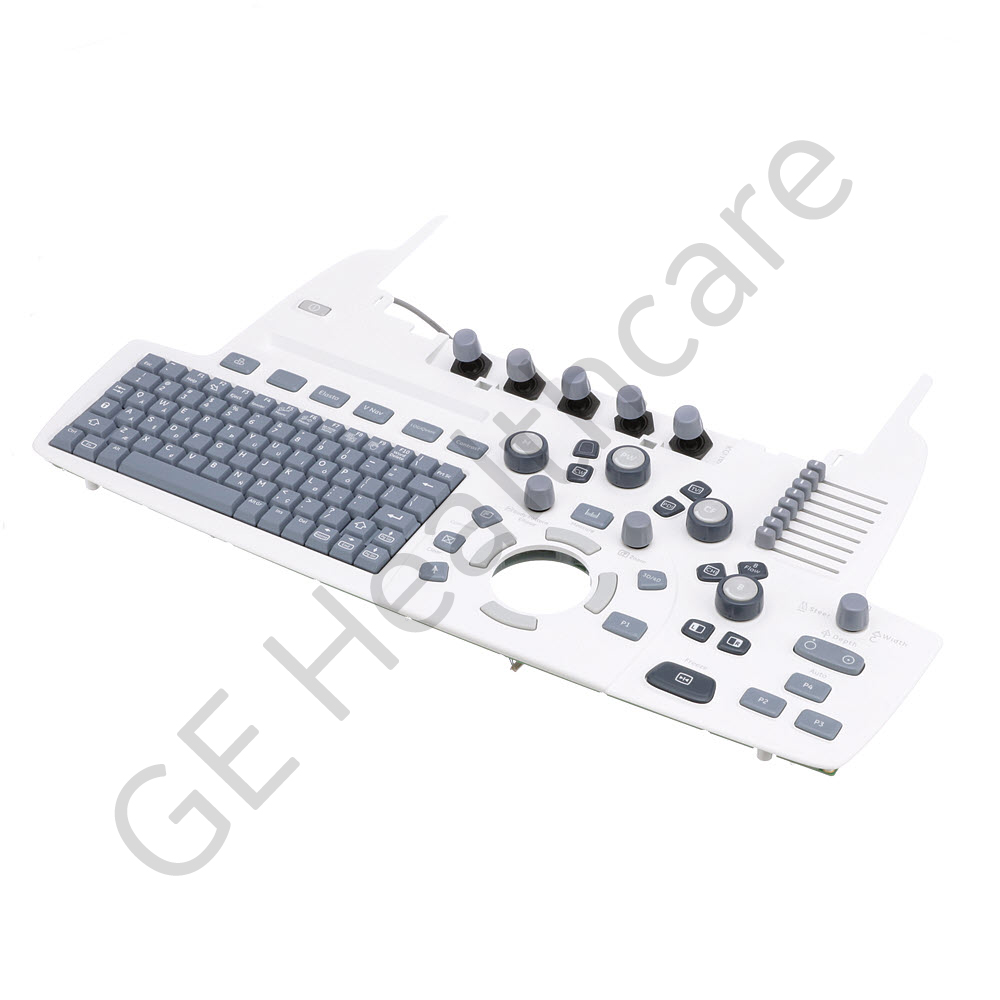

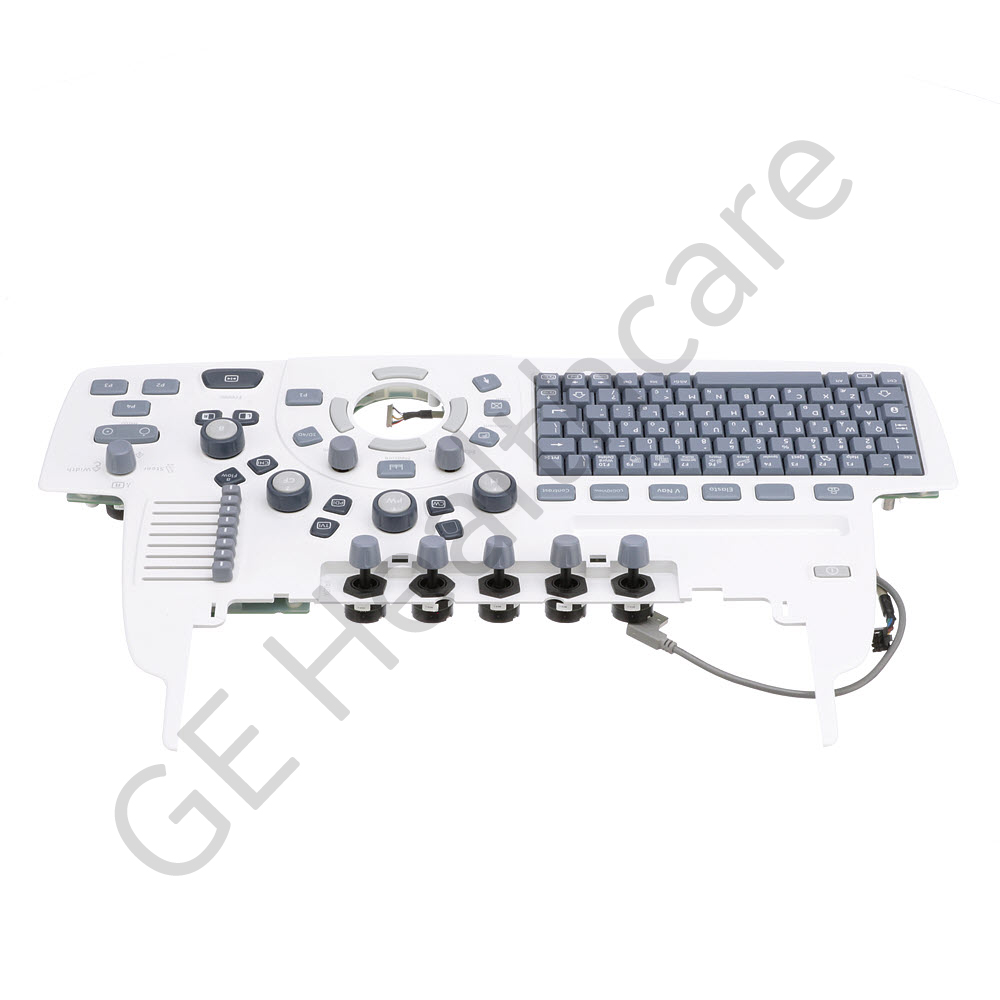

The Lower Operator Panel is used on Ichiro (Logic E9), a medical diagnostic ultrasound imaging system. The Ichiro lower operator panel is a complex user interface device with several sub devices. The lower operator panel includes an alphanumeric keyboard, an application specific configuration of buttons, slide pots, rotary encoders, joy stick type controllers and a receptacle feature to connect a trackball with buttons. There is an interface cable between the main lower operator panel circuit board and the trackball feature. The trackball interface uses a Hirose brand DF13-15P-1.25H (21) connector and connects to the operator panel. This connector is a 1.25mm pitch miniature crimping connector with single row right angle pin header (four wall correspond to vacuum absorption). It provides the grade with the vacuum absorption area, and secures automatic mounting by the tin plated embossed packaging technique. In addition, the Surface Mounting (SMT) header is equipped with the metal fitting to prevent solder peeling.

  • Características adicionales

    • Flammability rating UL 94V-0
