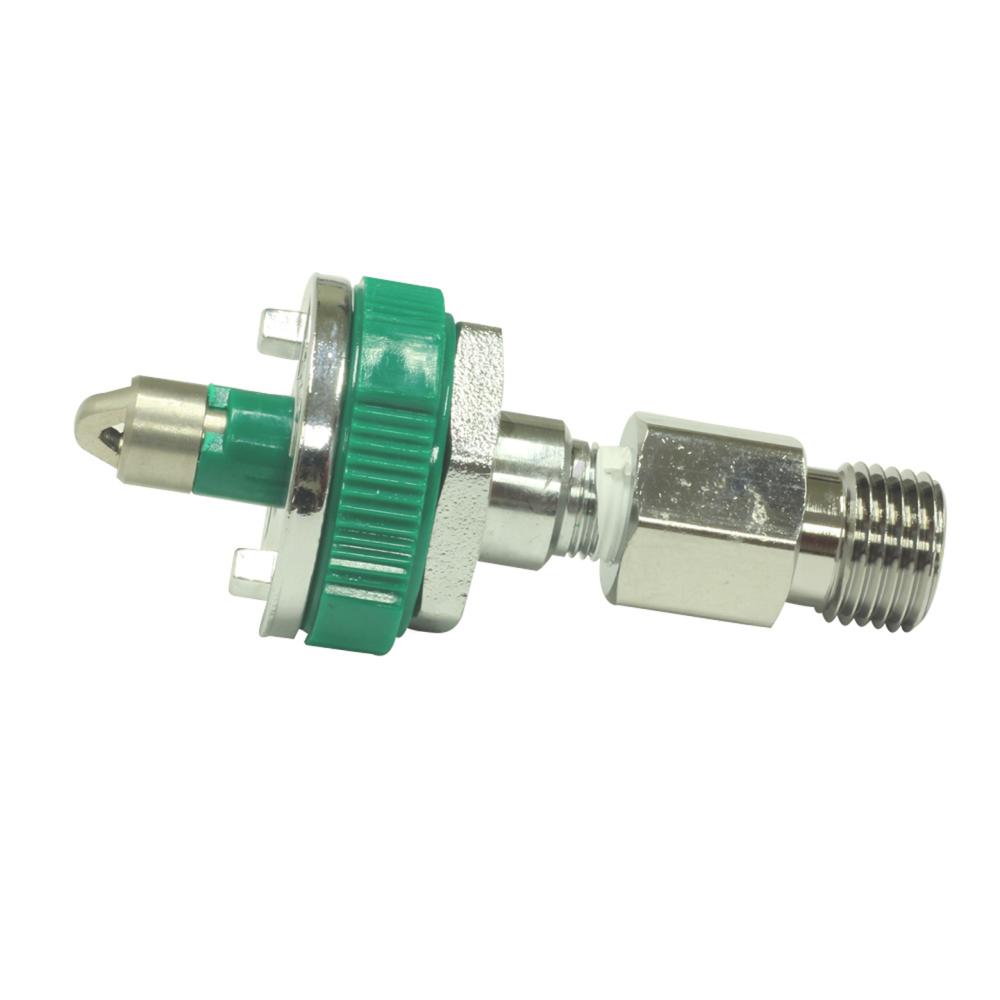

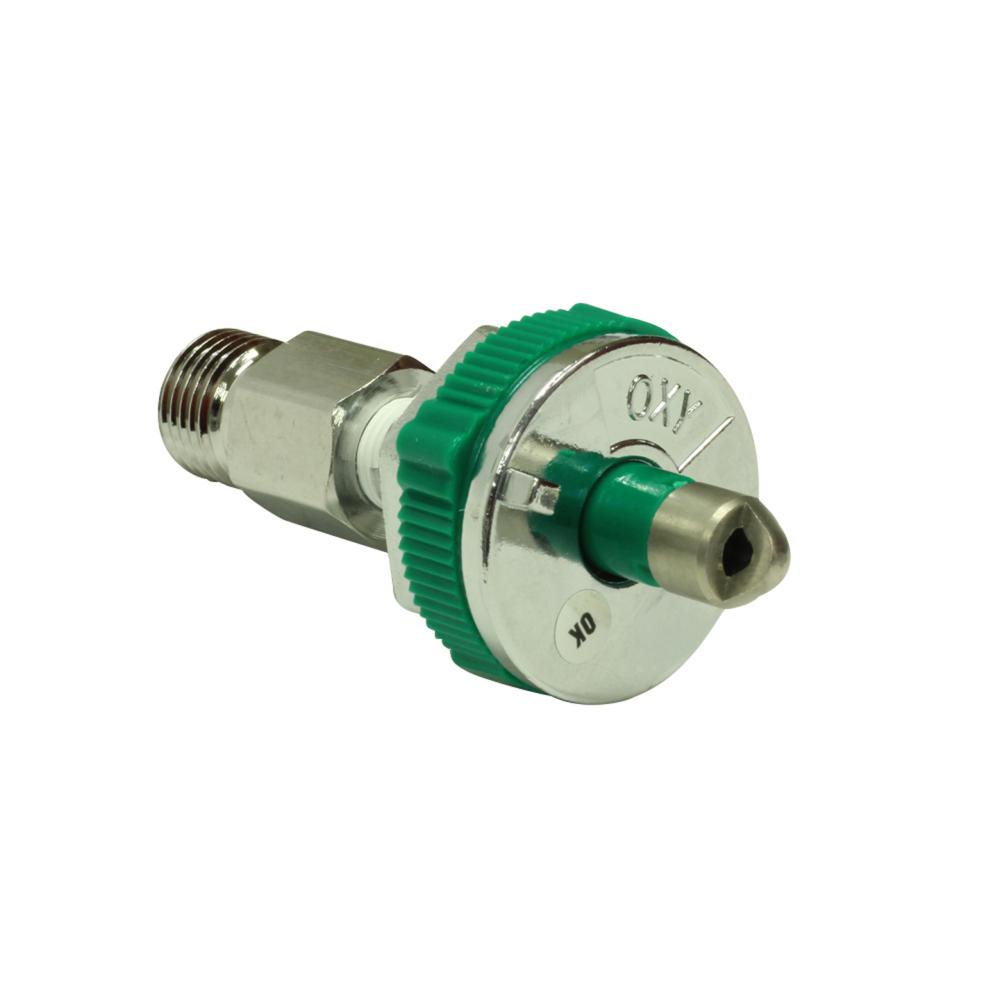

Adapter Diameter O₂ DISS M 9/16 -18

6700-0302-800
New
Maternal Infant Care
Other Maternal-Infant Care
GE HealthCare
GE HealthCare – Imaging/UL/PCS Parts
GE HealthCare
Total
Añadir a la lista de deseos
Iniciar sesión y agregar al carrito
Iniciar sesión y agregar al carrito
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Características

  • Quick connects
  • Easy to remove
  • Easy to installation
  • Male connector

Descripción del producto

The Adapter Diameter O₂ Diameter Index Safety System (DISS) M 9/16 -18 is used in oxygen delivery systems. This type of adaptor and coupler is also known as Diamond and Ohio quick-connects. The DISS is a gas station outlet for the supply of medical gases for hospital purpose. It has a unique arrangement of each type of gas to prevent an erroneous connection. The diamond style quick connect adapter is available in a wide variety of gases and configurations, including 1/8", 1/4" MNPT & FNPT (Male National Pipe Thread & Female National Pipe Thread) as well as, 1/4" and 5/16" Hose barbs and much more. It is a male quick connect fitting with male DISS-1240 threads. Allowing oxygen powered devices to plug into a quick-connect on a regulator when attached to the pressure hose. Disconnection is done by twisting a ring around the male connector which operates a spring-release mechanism. The system also contains a valve at the outlet/wall supply side which shuts off gas supply upon disconnection.

  • Características adicionales

    • High Quality
