Alarm Light Assembly DASH 4000

2026653-025
2004229-001
New
Patient Monitoring
Dash Monitors
GE HealthCare
GE HealthCare – Imaging/UL/PCS Parts
GE HealthCare
Total
Añadir a la lista de deseos
Iniciar sesión y agregar al carrito
Iniciar sesión y agregar al carrito
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Características

  • Good dimensional stability
  • Light weight and portable
  • Easy to fit and disconnect
  • Enhanced durability and reliability

Descripción del producto

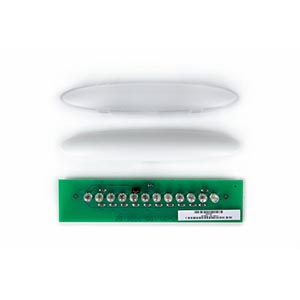

The Alarm Light Assembly DASH 4000, is a specially designed product, intended for use in Dash 4000™ patient monitoring equipment and other medical devices as applicable. The Dash 4000 Alarm Light provides a visual alarm for the monitor. The assembly consists of 6 red LEDs, 6 yellow LEDS and a connector. In the Dash, open-drain outputs on the Display Adapter Board provide low side drive to the LEDS. The alarm light is interfaced to the processor/power management board via the Display Flex. The LED indicators which flash a red color for critical and warning status of patient and yellow color for all other alarm status of the patient. This indication will be reflected to the display bezel of the patient monitor system. The products are made from the material which offers reliable operation, efficient functioning and longer life time. It is tested to work at an extreme atmospheric condition. The product is securely packaged inside a high quality packing box to avoid physical damage during transit.

  • Características adicionales

    • It is a ROHS compliant product

    Artículo equivalente:

    Tenemos las siguientes piezas equivalentes disponibles para usted. Estas son piezas de reemplazo compatibles. Estas piezas sin un hipervínculo se enumeran solo como referencia y no están disponibles para su compra en línea. Para obtener información adicional, comuníquese con el servicio al cliente

    Artículo equivalenteDetalles de parte
    2004229-001 PCB DASH 4000 ALARM LIGHT
