Detector Memory Board Assembly - RoHS

2285540-2
2285540
New
Computed Tomography (CT)
BRIVO CT385
GE HealthCare
GE HealthCare – Imaging/UL/PCS Parts
GE HealthCare
Total
Añadir a la lista de deseos
Iniciar sesión y agregar al carrito
Iniciar sesión y agregar al carrito
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Características

  • Non-Volatile memory
  • I2C Interface
  • Good structural design
  • Higher reliability and efficiency

Otras opciones de compra


Condition: Used

Descripción del producto

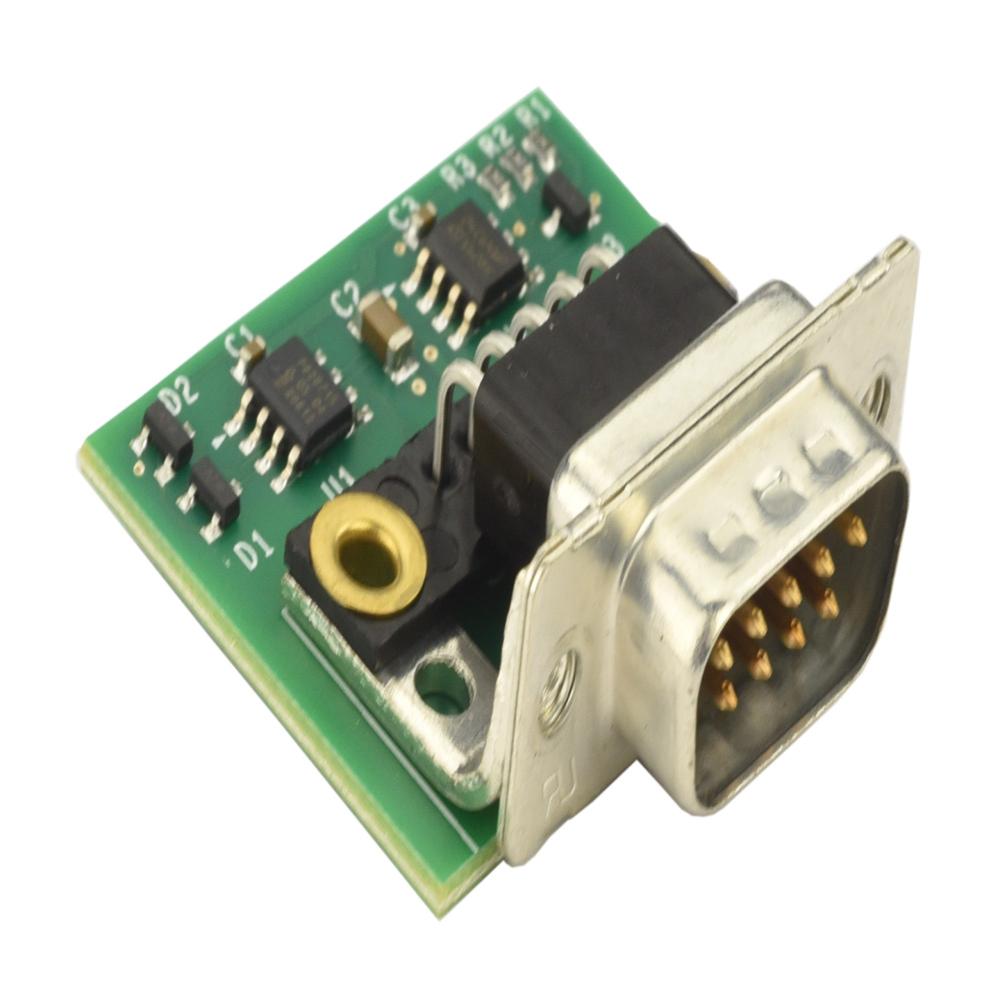

The Detector Memory Board (DMB) assembly is used to store data specific to the detector for use by engineering. It contains configuration of the detector as well as data programmed in the field regarding temperature and scan information. The main components in this circuit board are I2C Bus extender, 64Kb I2C compatible 2-wire Serial EEPROM and Diodes. The memory structure of 64K Bit EEPROM is 8 Kbyte X 8. It has a 9 pin SUB-D type on board plug for the connections. This circuit can be fixed in required unit using pan head tapping screws.

  • Características adicionales

    • Compact size
    • RoHS Compliant

    Productos compatibles

    Lightspeed 16

    Lightspeed 16

    Lightspeed Ultra

    Lightspeed Ultra

    Lightspeed Plus

    Lightspeed Plus

    Optima 520

    Optima 520

    Artículo equivalente:

    Tenemos las siguientes piezas equivalentes disponibles para usted. Estas son piezas de reemplazo compatibles. Estas piezas sin un hipervínculo se enumeran solo como referencia y no están disponibles para su compra en línea. Para obtener información adicional, comuníquese con el servicio al cliente

    Artículo equivalenteDetalles de parte
    2285540
